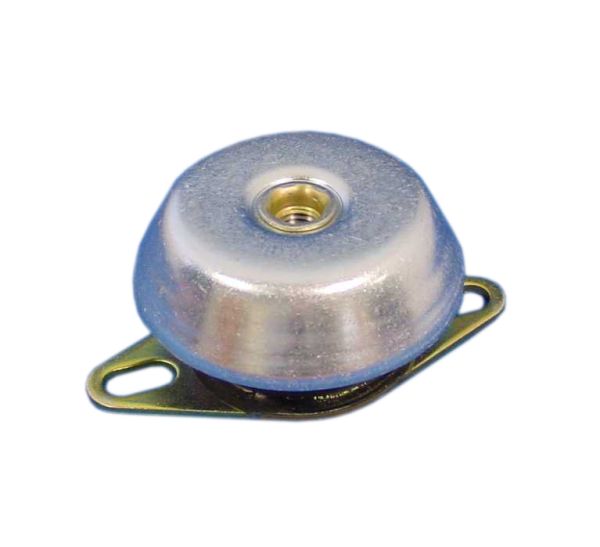

MD Anti-vibration Mounting type 150 - 60 shore - M12 - max. 40 kg

MD-Mountings are compact anti-vibration mountings and offer a high vibration insulation, especially for 1 and 2 cylinder diesel engines. The integrated rebound control-device limits excessive movements under shock loads (up to 5g) and ensures de engine is limited into three directions. MD Mountings are very suitable for mobile / maritime applications. These mountings can be supplied with a height adjustment feature.

Item number: 100130-60

Rubber hardness: 60 shore

Maximum allowable load: 40 kg
