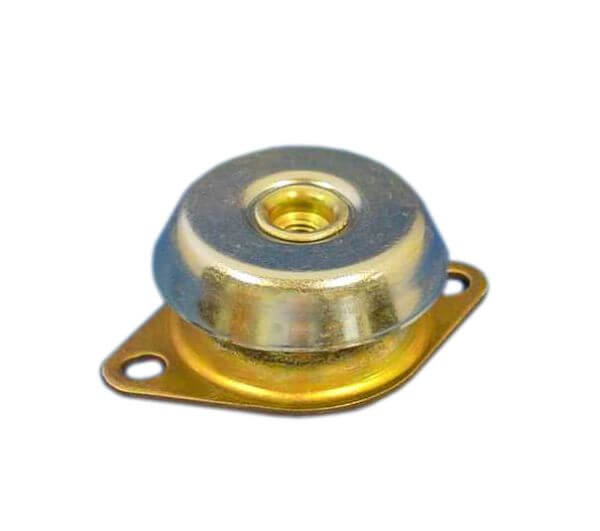

MD Anti-vibration Mounting type 120 - 02 - M12 - max. 100 kg

MD-Mountings are compact anti-vibration mountings and offer a high vibration insulation, especially for 1, 2 and 3 cylinder diesel engines. The integrated rebound control-device limits excessive movements under shock loads (up to 5g) and ensures de engine is limited into three directions. MD Mountings are very suitable for mobile / maritime applications. These mountings can be supplied with a height adjustment feature.

Item number: 100110-02

Rubber hardness: 60 shore

Maximum allowable load: 100 kg
