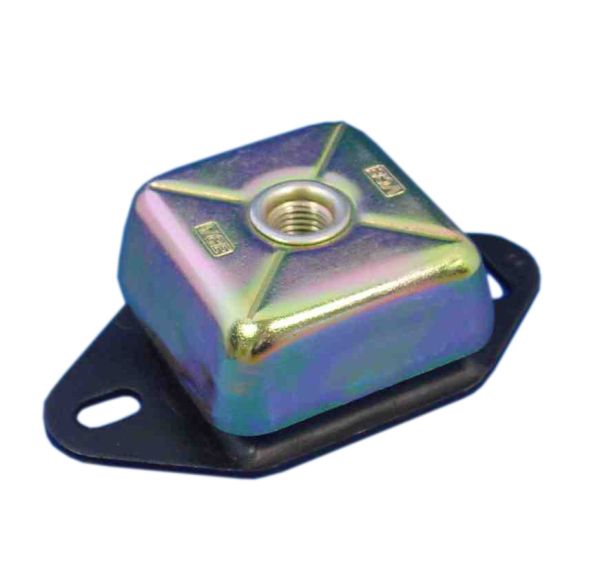

Marine Engine Mount type IM-600 - 65 shore - M20 - max. 425 kg

Marine Mounts are ideal for maritime applications. These compact anti-vibration mountings are easy to install and offer high vibration insulation. The integrated rebound control-device limits excessive movements under shock loads and ensures the engine is limited into three directions. Marine Mounts are available in five sizes and various rubber mixes to accomodate a large load range. These mountings can be supplied with a height adjustment feature. The IM-600 is a very robust engine mount and is characterized by a high absorption capacity.

Item number: 100030-65

Rubber hardness: 65 shore

Maximum allowable load: 425 kg
