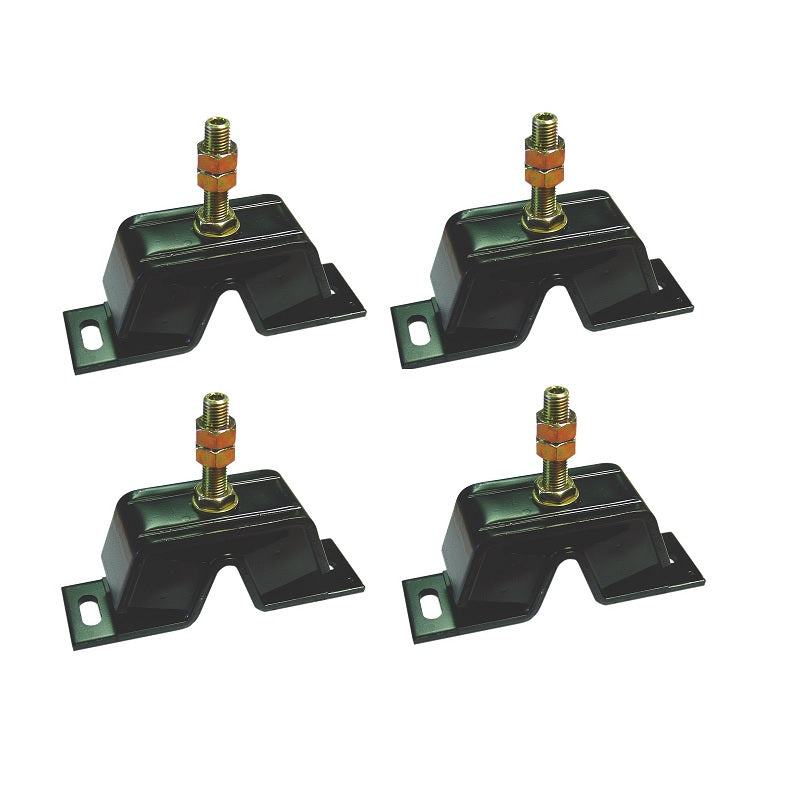

Marine Engine Mount set - YM-mount - 2x Type 75 & 2x Type 100

SKU: 100150-40-50-4
€354,95 inc. VAT

Need advice?

Email +31-(0)30-2761422

YM-Mountings (Yanmar) offer relatively high vibration and acoustic insulation, especially for 1, 2 and 3 cylinder marine propulsion engines. This anti-vibration mount is equipped with a M16 height adjustment unit and is also available as an “High-Dampening rubber mix” version (on request).



Suitable for the following engines:

  • 2GM
  • 2GM20
  • 2GM20-YEU
  • 2GM20F-YEU
  • 2GM20FVE
  • 2GM20VE
  • 2GMF
  • 2QM15
  • 3GM
  • 3GM30-YEU
  • 3GM30C
  • 3GM30F
  • 3GM30F-YEU
  • 3GM30FVE
  • 3GM30VE
  • 3GMD
  • 3GMDF
  • 3GMF
  • 3HM
  • 3HM35
  • 3HM35F
  • 3HMF
  • 3JH2BE
  • 3JH2E
  • 3JH2T
  • 3YM20
  • 3YM30

Item number: 100150-40-50-4

Rubber hardness: 2x 40 shore & 2x 50 shore

Maximum allowable load: 35 kg for each mount (40 shore), 70 kg for each mount (50 shore)
