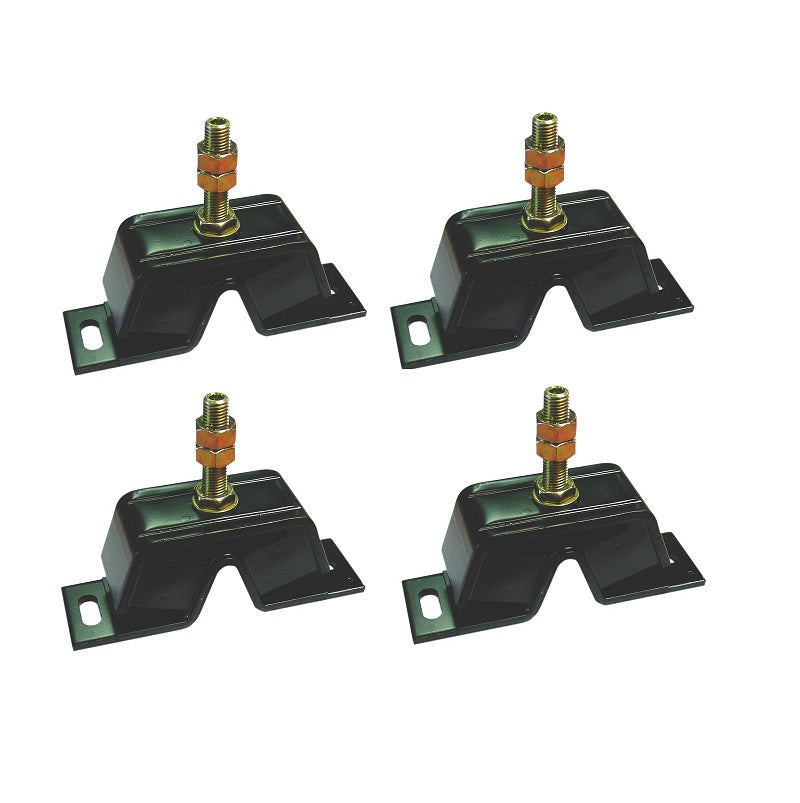

Marine Engine Mount set - YM-mount - 2x Type 100 & 2x Type 150

YM-Mountings (Yanmar) offer relatively high vibration and acoustic insulation, especially for 1, 2 and 3 cylinder marine propulsion engines. This anti-vibration mount is equipped with a M16 height adjustment unit and is also available as an “High-Dampening rubber mix” version (on request).

Suitable for the following engines:

• 2GM20FVE
• 2GM20VE
• 3GM30C
• 3GM30FVE
• 3GM30VE
• 3HM35
• 3HM35F
• 3JH2BE
• 3JH2E
• 3JH2T
• 3JH4E

Item number: 100150-50-60-4

Rubber hardness: 2x 50 shore & 2x 60 shore

Maximum allowable load: 70 kg for each mount (50 shore), 100 kg for each mount (60 shore)
