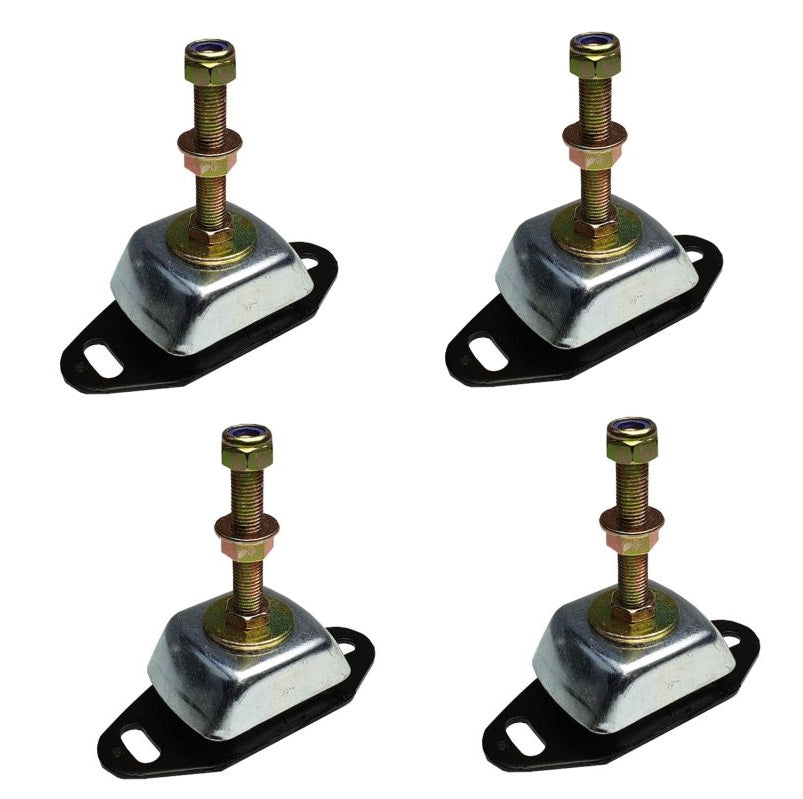

Marine Engine Mount set - Type 1609 - 2x 45 shore & 2x 55 shore - M16 stud

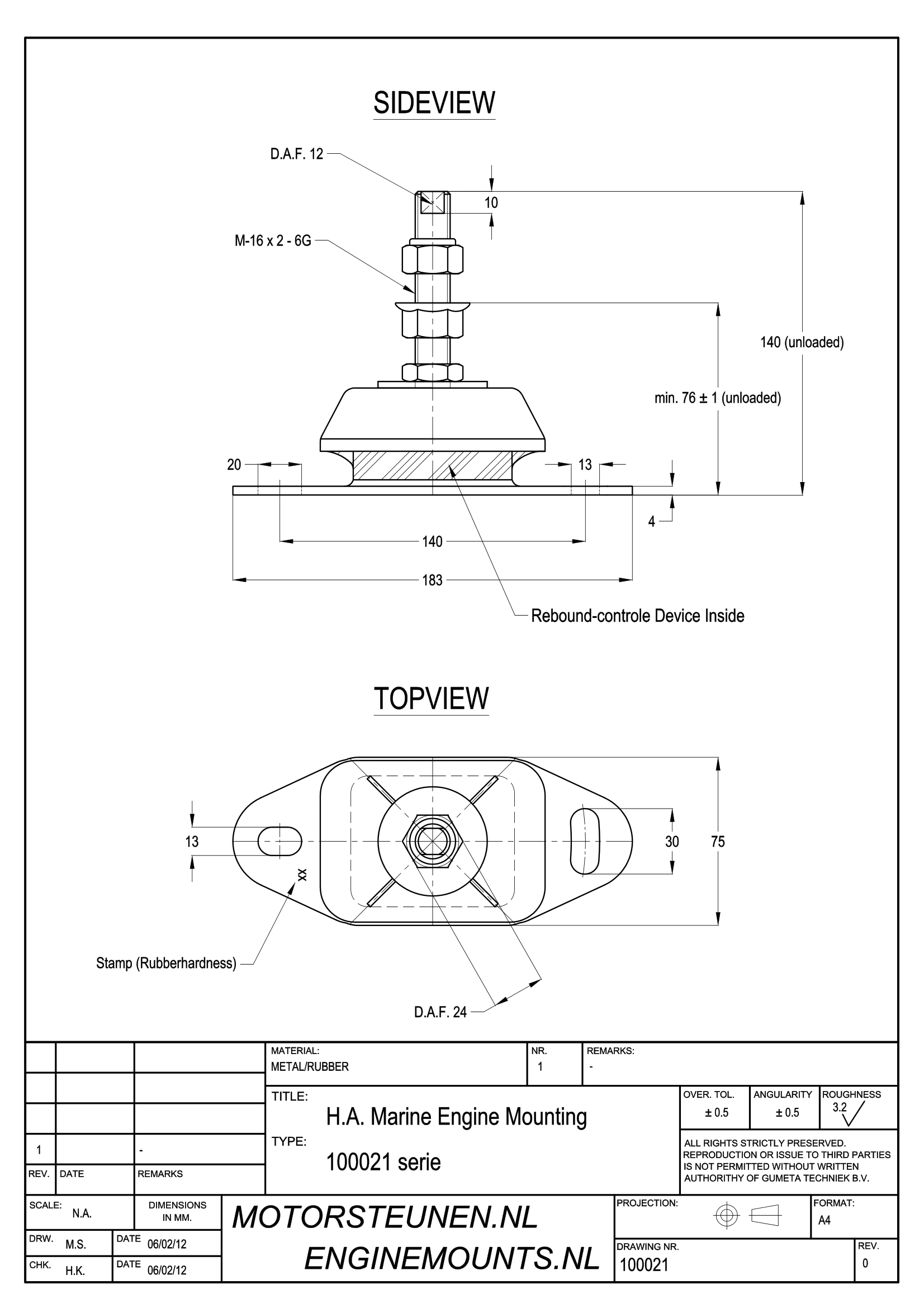

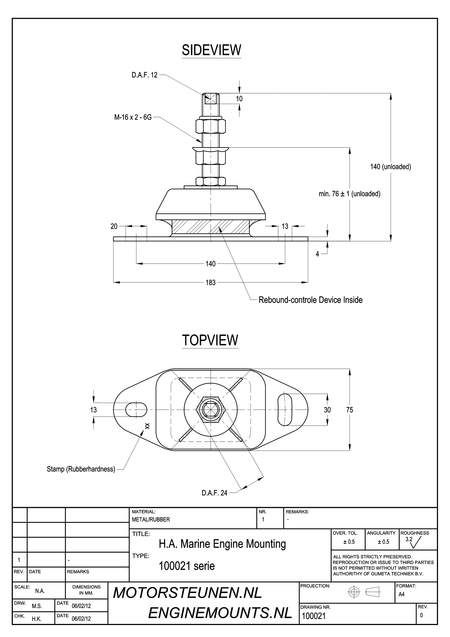

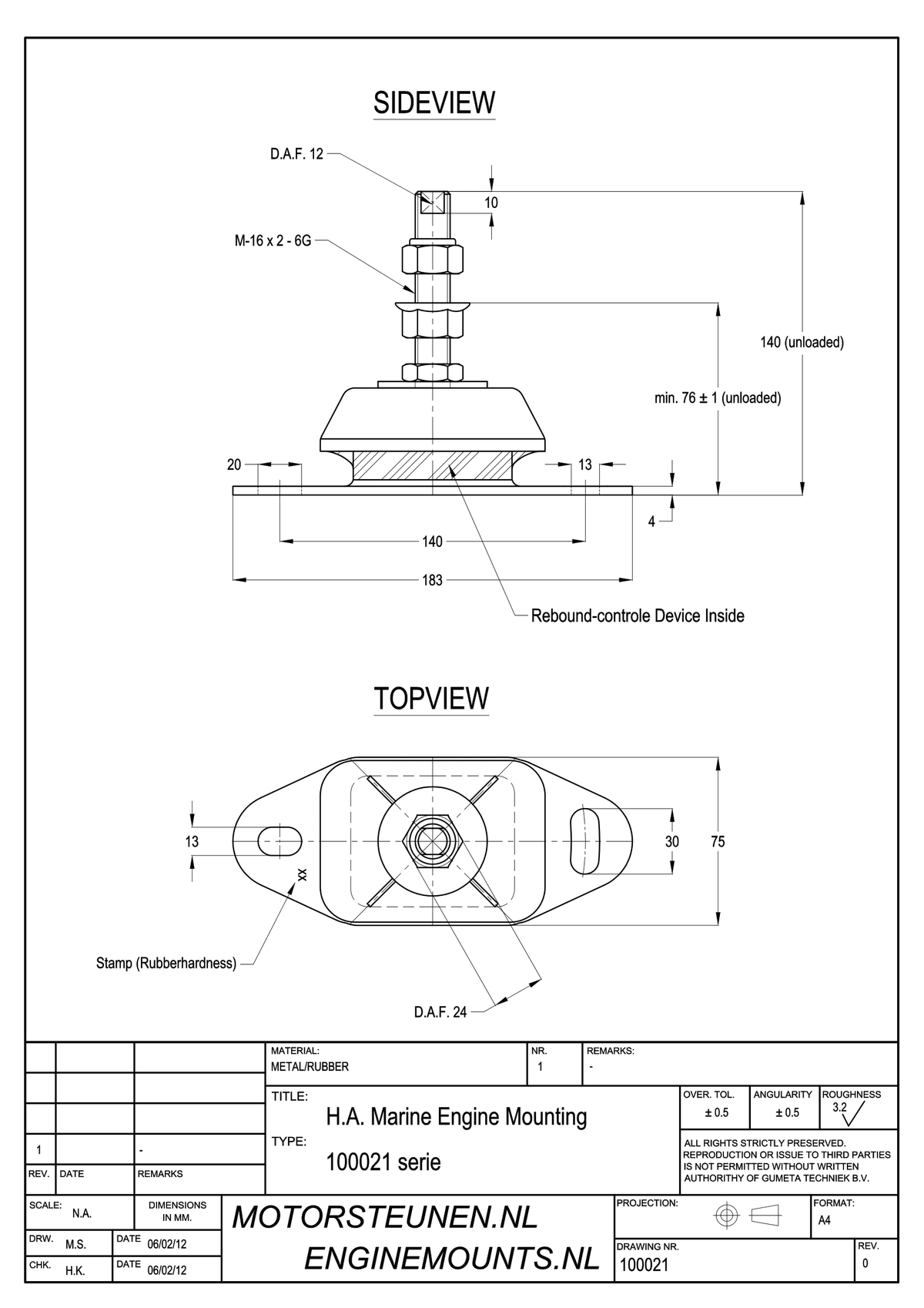

Marine Mounts are ideal for maritime applications. These compact anti-vibration mountings are easy to install and offer high vibration insulation. The integrated rebound control-device limits excessive movements under shock loads and ensures the engine is limited into three directions. Marine Mounts are available in five sizes and various rubber hardnesses. This marine mount is equipped with a M16 height adjustment unit.

Suitable for the following engines:

• AD30A

• AD31

• AD31B

• AD31D

• AD31D-A

• AD31L-A

• AD31P-A

• AD31XD

• AQAD30A

• D1-30

• D1-30B

• D1-30F

• D2-40

• D2-40B

• D2-40F

• D2-50F

• D2-55

• D2-55B

• D2-55C

• D2-55D

• D2-55E

• D2-55F

• D2-60F

• D2-75

• D2-75B

• D2-75C

• D2-75F

• D3-110I-A

• D3-110I-B

• D3-110I-C

• D3-130A-A

• D3-130A-B

• D3-130A-C

• D3-130I-A

• D3-130I-B

• D3-130I-C

• D3-160A-A

• D3-160A-B

• D3-160A-C

• D3-160I-A

• D3-160I-B

• D3-160I-C

• D3-190A-B

• D3-190A-C

• D3-190I-A

• D3-190I-B

• D3-190I-C

• KAD32P

• MD2040

• MD2040-C

• MD2040-D

• MD2040B

• MD22

• MD22A

• MD22L

• MD22P

• MD30A

• MD31A

• TAMD22P-B

• TAMD30A

• TAMD31A

• TAMD31B

• TAMD31D

• TAMD41B

• TMD22A

• TMD22B

• TMD22P-C

• TMD30A

• TMD31A

• TMD31B

• TMD31D

• HS1A

Item number: 100021-45-55-4

Rubber hardness: 2x 45 shore & 2x 55 shore

Maximum allowable load: 90 kg for each mount (45 shore), 140 kg for each mount (55 shore)
