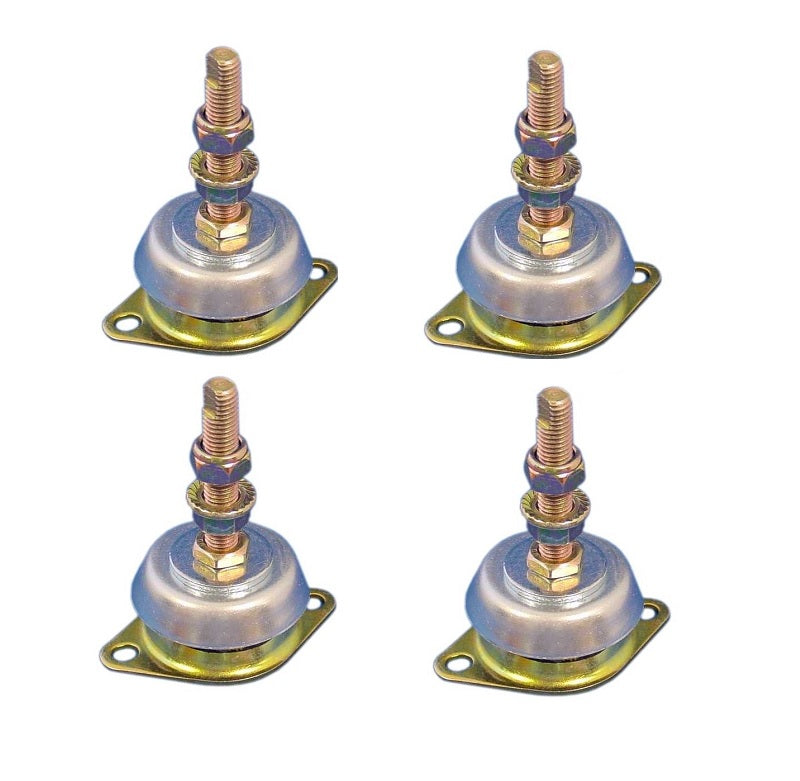

Marine Engine Mount set - MD-Mount Type 120 - 02 - M12 stud

SKU: 100111-02-4
€134,95 inc. VAT

Need advice?

Email +31-(0)30-2761422

MD-Mountings are compact anti-vibration mountings and offer a high vibration insulation, especially for 1 and 2 cylinder diesel engines. The integrated rebound control-device limits excessive movements under shock loads (up to 5g) and ensures de engine is limited into three directions. MD Mountings are very suitable for mobile / maritime applications. This anti-vibration mount is equipped with a M12 height adjustment unit.



Suitable for the following engines:

  • Yanmar 2QM15
  • 2GM20
  • Sabb 1GG (175Kg)

Item number: 100111-02-4

Rubber hardness: 60 shore

Maximum allowable load: 100 kg for each mount
