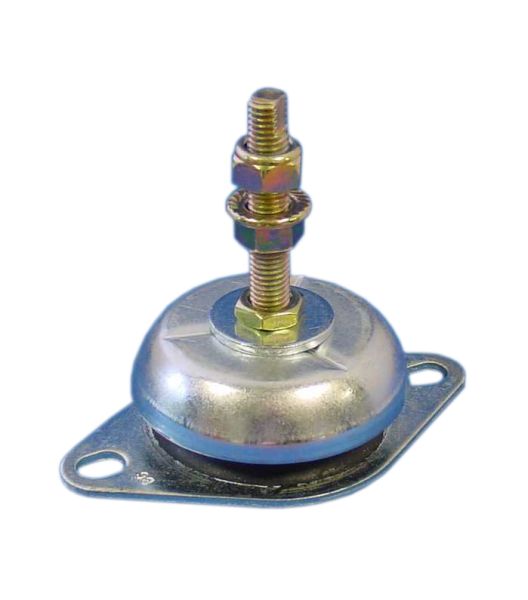

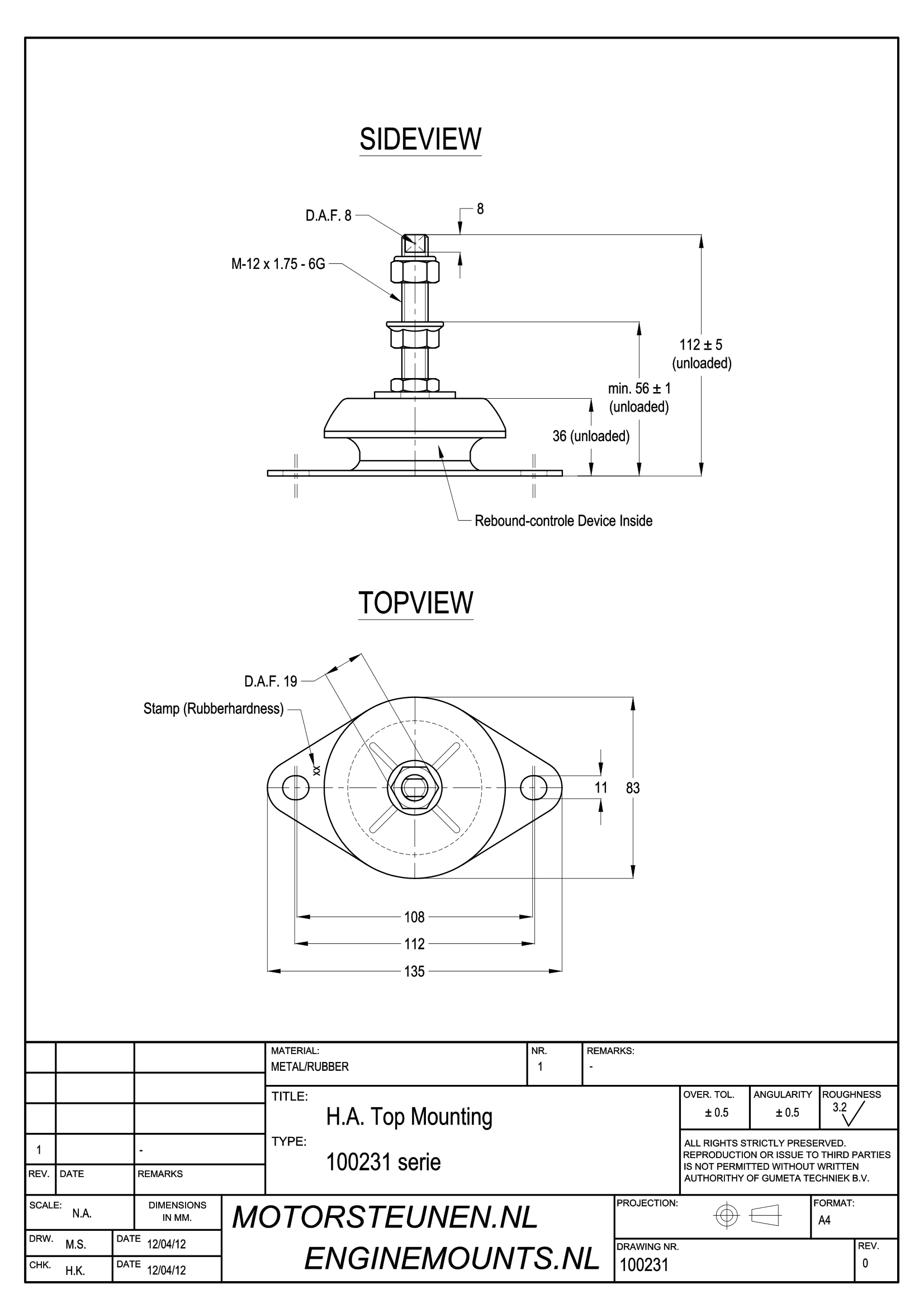

Anti-vibration Mounting type 230 - 60 shore - M12 stud - max. 175 kg

Anti-vibration Mounts are very suitable for stationary and mobile applications. These compact mountings are easy to install and offer a high level of vibration and acoustic insulation. The integrated rebound control-device limits excessive movements under external loads. These Anti-vibration mounts are protected with an anti-corrosion coating and are available in several rubber mixes to accommodate a large load range. This anti-vibration mount is equipped with a M12 height adjustment unit.

Item number: 100231-60

Rubber hardness: 60 shore

Maximum allowable load: 175 kg
