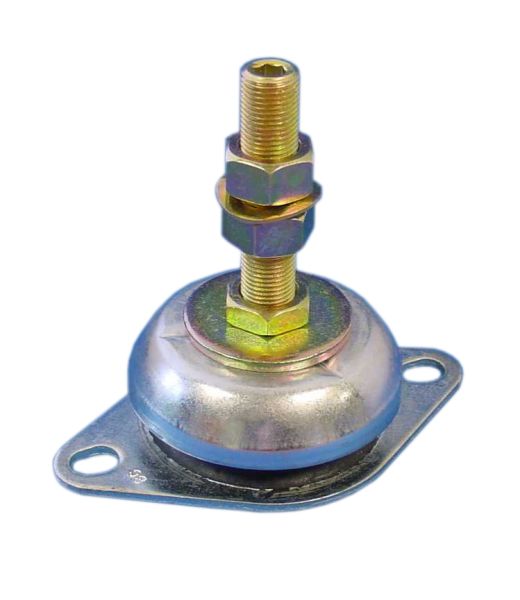

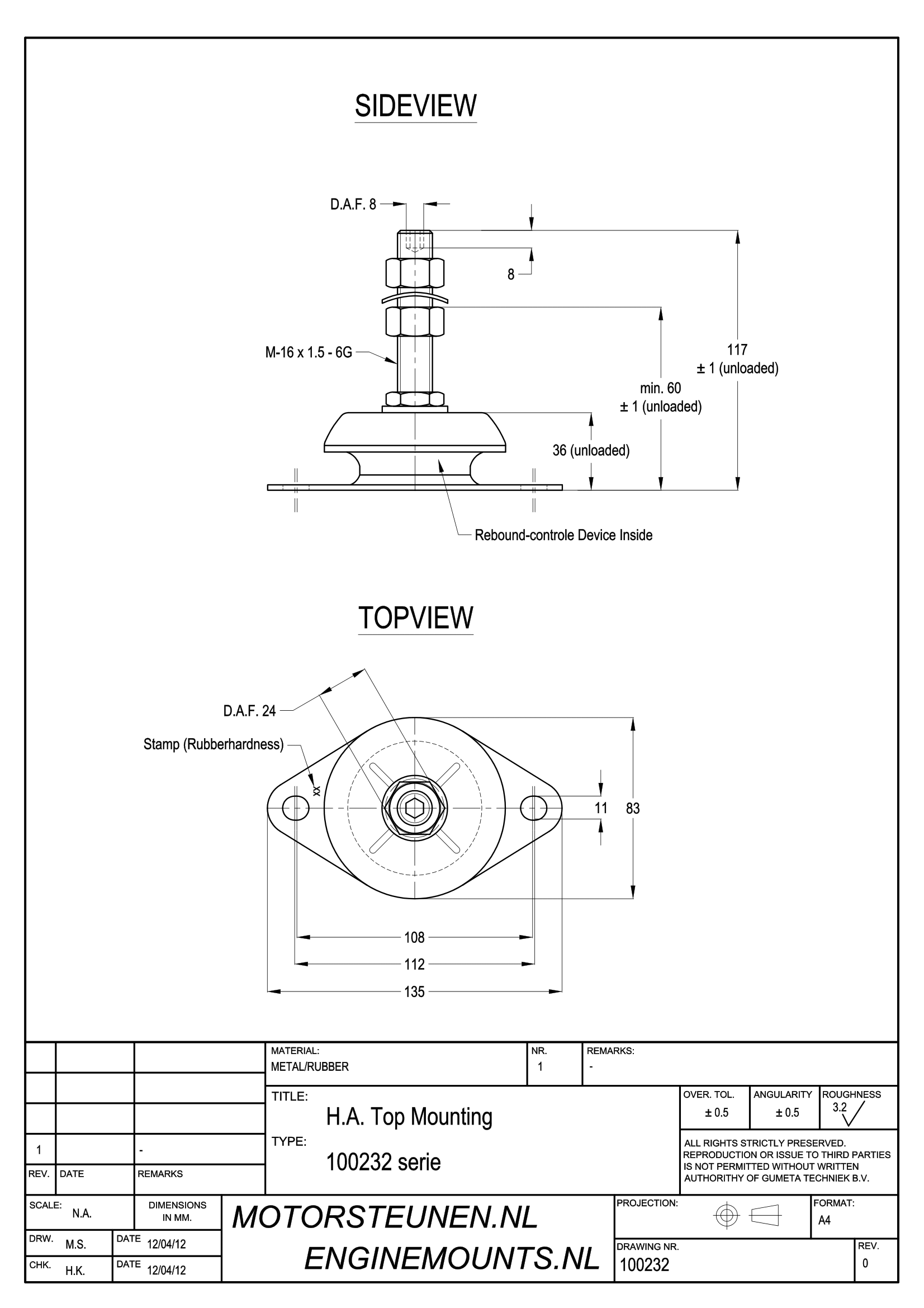

Anti-vibration Mounting type 230 - 40 shore - M16 stud - max. 75 kg

Anti-vibration Mounts are very suitable for stationary and mobile applications. These compact mountings are easy to install and offer a high level of vibration and acoustic insulation. The integrated rebound control-device limits excessive movements under external loads. These Anti-vibration mounts are protected with an anti-corrosion coating and are available in several rubber mixes to accommodate a large load range. This anti-vibration mount is equipped with a M16 height adjustment unit.

Item number: 100232-40

Rubber hardness: 40 shore

Maximum allowable load: 75 kg
