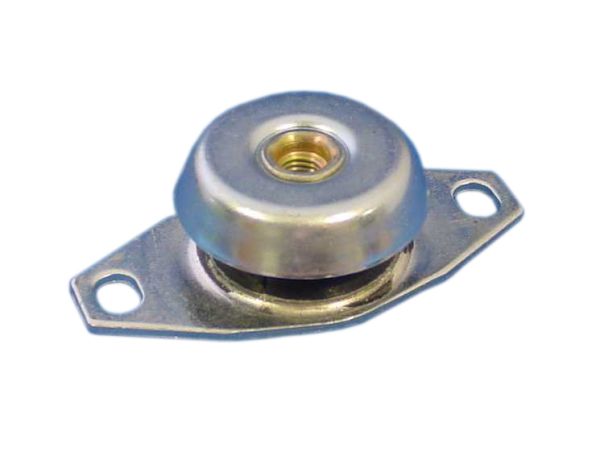

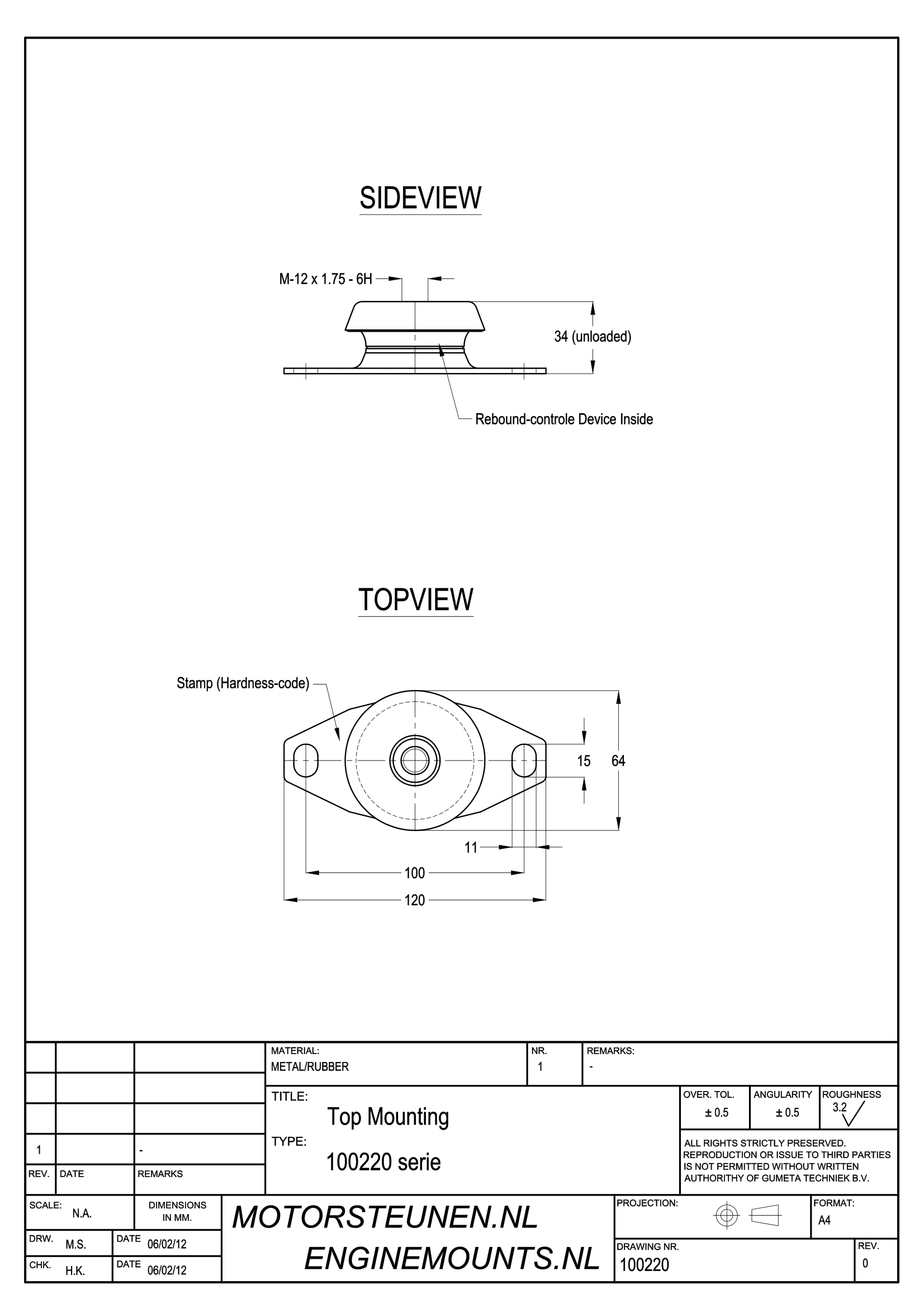

Anti-vibration Mount type 100 - 40 shore - M12 - max. 35 kg

Anti-vibration Mounts are very suitable for stationary and mobile applications. These compact mountings are easy to install and offer a high level of vibration and acoustic insulation. The integrated rebound control-device limits excessive movements under external loads. These Anti-vibration mounts are protected with an anti-corrosion coating and are available in several rubber mixes to accommodate a large load range. In addition, our ant-vibration mounts are available with height adjustment units.

Item number: 100220-40

Rubber hardness: 40 shore

Maximum allowable load: 35 kg
